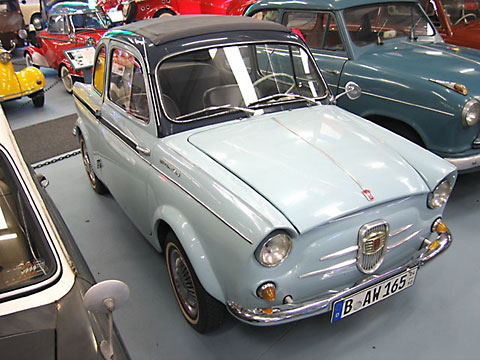

1960 NSU/Fiat Weinsberg 500 Limousette

Loosely based on the Fiat Nuova 500, the Weinsberg 500 Limousette and Coupe emerged from the NSU/Fiat plant in Heilbronn.

The drivetrain was all Fiat 500, but the coachwork was more similar with the NSU Prinz.

Only small numbers of these cars were produced, 6190 over 4 years.

Manufacturer: NSU Automobil-Aktiengesellschaft Heilbronn / Neckar, Germany

Model: Weinsberg 500 Limousette Motor: 2-stroke Body: Steel
Years Built: 1959- 1963 No. Cylinders: 2 Chassis: Tube
No. Produced: 6190 (total all models) Displacement: 479 cc Suspension Front: Leaf
No. Surviving: N/A Horsepower: 15 Suspension Rear: Coil
Length: 3080 mm Gearbox: 4 + rev Steering: Worm & Segment
Width: 1350 mm Starter: Dynastart Brakes: Hydraulic
Weight: 530 kg Electrics: 12 v 4 Wheels: 4.40 x 12"
Interior: 4 seats Ignition: Coil Top Speed: 95 km/h
